Footplates to Concrete and Steel
End Support WBD F 80
Application
End Support WBD F 80 is ideal for making supports for wall and floor mounting, as well as crossbars in conjunction with Beam Section F 80.

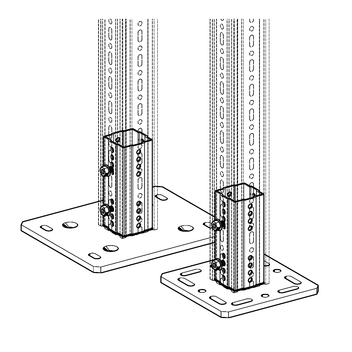

Beside the direct connection to building structure, different base plates allow an immediate connection to various flange widths.

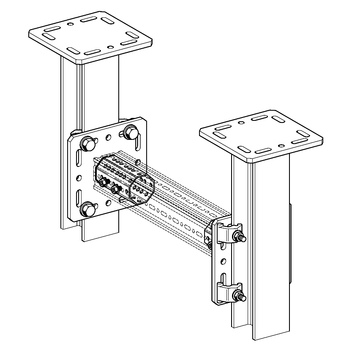

For crossbar constructions, version WBD F 80-T has to be used. The octagonal connection allows max. use of section width without interfering screws or plates.
Installation
Depending on the situation, different options are recommended:
| a) | Fixing to building structure using 4 heavy-duty 1/2" anchors. |

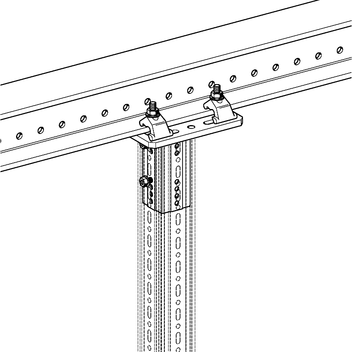

| b) | Frictional connection to steel beams using Assembly Set 5P M12 S, M16 S or respective Beam Clip. |
| c) | Form-locking connection to beam systems STF 100 or 120 using Bracket Plates FV 100/120. |
The Beam Section TP F 80 connected to the End Support WBD F 80 has to be screwed with 4 Self Forming Screws FLS F. On each of the opposite sides 2 Self Forming Screws FLS F are necessary.
Technical Data
| Type | for flange width [in] | Dimensions of base plate [in] | Slots in base plate for [in] |
|---|---|---|---|
| WBD F 80-80/120 | 3 1/8" - 4 3/4" | 8 5/8" x 8 5/8" x 1/2" | 1/2" |
| WBD F 80-121/160 | 4 3/4" - 6 1/4" | 14 3/16" x 10 1/4" x 1/2" | 1/2" |
| WBD F 80-161/200 | 6 1/4" - 7 7/8" | 14 3/16" x 12 1/4" x 1/2" | 5/8" |
| WBD F 80-201/300 | 7 7/8" - 11 3/4" | 16 1/2" x 8 5/8" x 1/2" | 5/8" |
| WBD F 80-T | 3 1/8" - 4 3/4" | 8 5/8" x 8 5/8" x 1/2" | 1/2" |

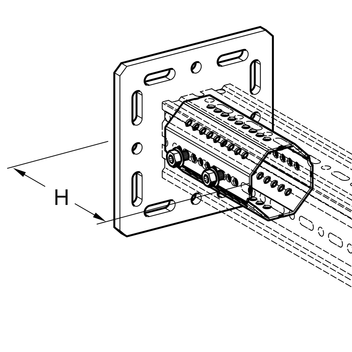

| Type | for flange width [mm] | Dimensions of base plate [mm] | Slots in base plate for | H [mm] |
|---|---|---|---|---|
| WBD F 80-80/120 | 80 - 120 | 220 x 220 x 12 | M12 | 202 |
| WBD F 80-121/160 | 121 - 160 | 320 x 260 x 12 | M12 | 202 |
| WBD F 80-161/200 | 161 - 200 | 320 x 310 x 12 | M16 | 202 |
| WBD F 80-201/300 | 201 - 300 | 420 x 220 x 12 | M16 | 202 |
| WBD F 80-T | 80 - 120 | 220 x 220 x 12 | M12 | 152 |
| Configuration: | Base plate welded to square F 80 resp. octagonal element F 80 (WBD F 80-T only) |
| Material: | |
| Plate | Steel, HCP |
| Square F 80 | Steel, HCP |
| Octagonal element F 80 | Steel, HCP |
